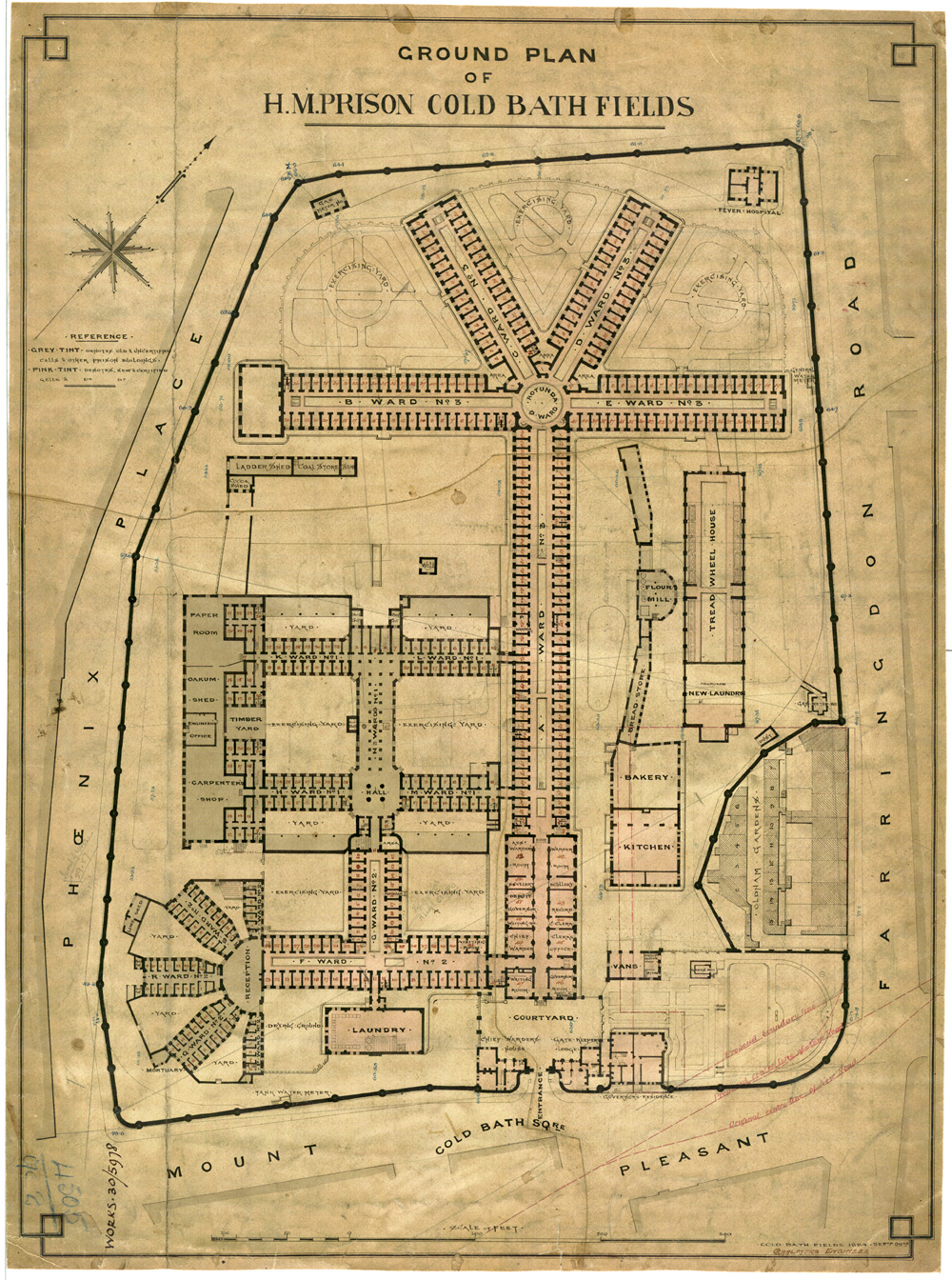

Ground plan of HM Prison Cold Bath Fields (WORK 30/5978)

You can drag the image around to explore it.

The grey shading shows old buildings, the pink shows building which was new in 1884, increasing the capacity of the prison to 1,000 prisoners.
